A review of kinetics for Fischer-Tropsch
synthesis
Yang Jun 1,2
(1Department of Chemistry, Jinan University, Guangzhou 510632 China; 2State
Key Laboratory of Coal Conversion, Institute of Coal Chemistry, Chinese Academy of
Sciences, Taiyuan, 030001 )
Received on ; Support by
Committee of Science and Technology of China via 863 plan (No.2001AA523010)
Abstract A critical review of the
kinetics and the mechanism for Fischer-Tropsch Synthesis (FTS) is given. Considerable
attention has been devoted to the new developments in the reaction mechanism and kinetics
of FTS, such as the detailed kinetics and the new insights into FTS mechanism obtained by
using computational method. It is concluded that secondary reactions of olefin play an
important role in modifying the distribution of the FTS products. From the theoretical and
practical viewpoints, it is critically important that to get reliable kinetic equations
which base on detailed mechanism and combine the rates of reactants consumption and
products formation simultaneously.
Keywords Fischer-Tropsch Synthesis, Kinetics, Mechanism, Product distribution
1. INTRODUCTION
Fischer-Tropsch synthesis (FTS) that discovered by Fischer and Tropsch over 77 years ago,
as an alternate process, can convert the synthesis gas (H2/CO) derived from
carbon sources such as coal, peat, biomass and natural gas, into hydrocarbons and
oxygenates. In consideration of the limited reserves of crude oil, today, it continuously
attracts renewed interests as an option for the production of clean transportation fuels
and chemical feedstocks.1-5 It is of significant interest in both the process
and the mechanism of FTS from the practical and theoretical viewpoints. The FTS produce a
considerable variety of products that are mainly hydrocarbons and oxygenated compounds.
The operation condition has significant influence upon the product distribution, therefore
it is critically important to control the selectivity of the product. This is closely
related to the kinetics and mechanism of the FTS. In the light of the potential economic
and environmental importance of FTS, a detailed understanding of the process is highly
desirable. Such an understanding might enable the industrial application of the FTS to be
made more efficient. However, at the present time, a full understanding of the FTS
mechanism is still lacking and controversy still exist.
2. FISCHER-TROPSCH SYNTHESIS
The Fischer-Tropsch synthesis is a complex network of parallel and series reactions
involving different extents and determining altogether the overall catalyst performance.
The whole synthesis reaction can be simplified as the combination of the FTS reactions and
the water-gas shift (WGS) reaction.
nCO + (2n+1)H2 = CnH2n+2 + nH2O
(1)
nCO + 2nH2 = CnH2n + nH2O
(2)
nCO + 2nH2 = CnH2n+2O + (n-1)H2O
(3)
CO+ H2O = CO2 + H2
(4)
Here, Eq. (1), (2) and (3) represent the paraffin, olefin and
oxygenated compounds formation, respectively, Eq. (4) described the water-gas shift (WGS)
reaction.
3. MECHANISM OF FISCHER-TROPSCH SYNTHESIS
The FTS reaction considered here consists of surface steps in five categories: (1) the
adsorption of reactants (H2 and CO); (2) chain initiation; (3) chain
propagation; (4) chain termination and desorption of products; (5) readsorption and
secondary reaction of olefins[2-5].
3.1 Chain initiation
A great number of surface species are involved in the chain initiation and chain
propagation, and this leads to great difficulty to describe the Fischer-Tropsch kinetics.
It is generally accepted that the chain initiation is started by the dissociation of the
CO, and sequential hydrogenation to form CH, CH2 and CH3, namely as
the "building block" of the hydrocarbon.
However, for the further formation of hydrogenated carbon species, mechanism studies for
FTS often assumed the formation of CH2 and CH3 species,[ 2-5] while recent characterization and theoretical
studies in energetics debate for the more possible formation of CH species on several
transition metal surfaces.[6,7]
3.2 Chain growth mechanism
There is generally an agreement that the FTS reaction is a surface polymerization reaction
and the step that CHx species couple with each other(C-C coupling) to form
high-molecular hydrocarbon is the key step[7-13]. Since the discovery of the
process, the chain growth mechanism of FTS has been extensively studied and many results
have been obtained[7-13]. However, there is still in controversy about the
mechanism of chain growth in the Fischer-Tropsch synthesis. The alkyl mechanism proposes
that the reaction is initiated by the formation of a methyl species, and that chain growth
takes place by the successive insertion of methylene into the metal-alkyl bond: [8]
CH2s1 + CnH2n+1s1 = Cn+1H2n+3s1
+ s1 (5)
The alkylidene mechanism proposes that the formation of the adsorbed
ethylidene initiates the chain formation, and that chain growth is facilitated by
methylene insertion into the metal-alkylidene bond:[9]
CH2s1 + CnH2ns1 = Cn+1H2n+2s1
+ s1 (6)
Another mechanism assumes that chain growth is initiated by the
adsorption of CO on the active sites already containing hydrocarbon intermediate and then
by a sequence of hydrogenation:[10]
CO + CnH2n+1s1 = CnH2n+1-s1-CO
(7)
CnH2n+1-s1-CO + H2 = CnH2n+1-s1-C
+H2O (8)
CnH2n+1-s1-C +H2 = CnH2n+1-s1-CH2
(9)
The alkenyl mechanism was proposed by Maitlis11 as an
alternative to the alkyl mechanism. This mechanism suggested that reaction is initiated by
the formation of a surface vinyl species (-CH=CH2) from a surface methyne (¡ÔCH) and a surface methylene (=CH2). Then chain growth
occur through the insertion of a surface methylene (=CH2) into a vinyl species
to form a surface allyl species (-CH2CH=CH2) which sequentially
isomerizes to a surface alkenyl (vinylic) species (-CH=CHCH3). There is
evidence that the sp2-sp3 carbon coupling involved in proposed chain
propagation is kinetically favored over the sp3-sp3 carbon coupling
required in the alkyl mechanism. However, most of the organometallic model systems used to
support the mechanism have not used common FT catalysts, such as iron and cobalt and the
key steps in the mechanism is not well established. In particular the isomerization of
surface allyl species to alkenyl species has little precedent in model studies.
Although there are a great number of evidences that obtained by using
organometallic and surface science models to support the mechanisms mentioned above, the
debate is still continued. In 2000, Overett[12] gave a detailed review of the
mechanisms (alkyl and alkenyl mechanisms) for the FTS and the evidence for these
mechanisms. He suggested that it is possible that there is not one mechanism operating for
the formation of all observed products due to the wide range of operation conditions for
the FTS, and both alkyl and alkenyl intermediates may play an important role under various
conditions.
Recently, Ciobîcä [7,13] studied the chain growth
mechanism of FTS over Ru catalyst by using periodic ab initio quantum chemical calculations
and offer more atomic-level description of how specific steps are taken place. The results
show that CH was the most stable of all C1 surface intermediates and used as
the primary monomer units for growing longer carbon chains rather than CH2. Two
chain growth mechanisms based on carbene-type mechanisms were proposed, in one mechanism
the chain growth was initiated by addition of CH to growing alkylidene (RCH-)(R=alkyl) and
another mechanism was initiated by addition of CH to growing alkyl (RCH2-)(R=H
or alkyl). It is concluded that the two mechanisms proposed can proceed in parallel and
hydrocarbon chain can be formed via a few cycles of one mechanism and the few from the
other, depending on the balance of hydrogenation and C-C coupling, since the two
mechanisms share the same intermediate.
In 2002, by means of extensive density functional theory (DFT) method,
Liu[6] studied the FTS and got the relative stabilities of many key
intermediates. In their work, several C-C coupling mechanisms that likely to be involved,
such as C+C, C+CH, C+CH2, CH+CH, CH+CH2, CH2+CH2,
CH2+CH3 coupling, were compared quantitatively. The results show
that the C+CH coupling has the lowest barrier of 0.43ev, whereas the well-regarded
mechanism of CH2+CH3 possesses high reaction barriers. They
suggested that chain growth in FTS may be following a C+CR pattern rather than CH2+CH2R
pattern(R=H or alkyl).
4. MODEL OF PRODUCT DISTRIBUTION
In 1946, Herington[2,20] first treated the molar distribution of hydrocarbons
from Fischer-Tropsch Synthesis in terms of a polymerization mechanism. The same
formulation was rediscovered by Anderson[2,20] et al in 1951 and named as
Anderson- Schulz-Flory (ASF) distribution. In the ASF model, the formation of
hydrocarbon chains was assumed as a stepwise polymerization procedure, and the chain
growth probability was assumed to be independent of carbon number.
(10)
However, significant
deviations from the ideal ASF distribution have been observed in many studies.[2,14]
Picher[14] et al for the first time reported the deviations of experimental
results from ASF distribution. The usual deviations of the distribution of the linear
hydrocarbons are a relatively higher selectivity to methane, a relatively lower
selectivity to ethane, an increase in chain growth probability with increasing molecular
size, and an exponential decrease of olefin to paraffin ratio with increasing chain length
in comparison to the ideal ASF distribution. Some authors[2,15] interpreted the
deviations from the standard ASF distribution by the superposition of two ASF
distributions. They suspected the existence of two sorts of sites for the chain growth on
the catalyst surface, and therefore proposed that each site might individually yield the
ideal ASF distribution with different chain growth probabilities. However, this
explanation cannot interpret the increase of the paraffin/olefin ratio with the chain
length. On the basis of the experiments with co-fed olefins, it was noted that the
re-adsorption and secondary reaction of olefins had a great influence on the products
distribution of FTS. Some researchers[16,17] proposed a more plausible
explanation for these deviations and suggested that the occurrence of secondary reactions
of the olefins caused the deviations from the ASF distribution. Kuipers[17] et
al. described the increase of physisorption strength of hydrocarbon at the catalyst
interface with increasing chain length by .
Iglesia et al[16] developed a model describing the olefin re-adsorption effect
enhanced by intra-particle and inter-particle transport processes. They suggested that the
diffusion limitation within liquid-filled pores slowed down the removal of 1-olefins,
which caused an increase of their residence time within the catalyst pores. In 1999, van
der Laan[2] studied the kinetics
of the gas-solid Fischer-Tropsch synthesis over a commercial Fe-Cu-K-SiO2
catalyst in a continuous spinning basket reactor. They proposed a product distribution
model named as a-Olefin
Readsorption Product Distribution Model (ORPDM), which combines a mechanistic model of
olefin readsorption with kinetics of chain growth and termination on the same catalytic
sites. The olefin readsorption rates depend upon chain length due to increasing
physisorption strength on the catalyst surface and increasing solubility in FT-wax inside
the catalyst pores with increasing chain length. With this model, the experimental
observed relatively high yield of methane, relatively low yield of ethane and both the
exponential decrease of olefin to paraffin ratio and the change of the chain growth
probability with chain length can be predicted. However, in their model, the CO
hydrogenation model and the olefin re-adsorption model were treated separately.
5. KINETICS OF FISCHER-TROPSCH SYNTHESIS
The FTS product is composed of a complex multi-component mixture of linear and branched
hydrocarbons and oxygenated products, the majority of which are linear hydrocarbons.[2]
The FTS kinetics has extensively been studied, and many attempts have been made for the
rate equations describing the FTS reactions.[3-5] In most cases, the
hydrocarbon products were lumped according to the carbon number of hydrocarbon molecules
with an ideal Anderson-Schulz-Flory (ASF) distribution. Although a few of available
kinetics models were developed based on the detailed mechanism of Langmuir-Hinshwood-
Hougen-Watson (LHHW) type, [2-5] only two of them simultaneously considered
both the syngas conversion rates and the hydrocarbon formation rates.
5.1 Lumped kinetics
In 1956, Anderson2 proposed a rate expression which includes water inhibition:
(11)
Huff and Satterfield2 observed a linear decrease in the
adsorption parameter in equation
(10) with partial pressure of hydrogen and modified the equation (10) as the following
form:
(12)
Ledakowicz and Deckwer18 proposed a rate expression
including CO2 inhibition, because the water-gas-shift reaction will influence
the reaction rate by altering the concentration of the reactants and products.
(13)
(14)
However, we recently have pointed out that the deficiencies existing in the conventional
lumped models and those tailing syngas conversion rates with carbon number distribution
formula when a comprehensive simulation is required. [5]
5.2 Detailed kinetics
Zimmerman and Bukur[19] proposed a kinetic model for both the formation of
linear hydrocarbons and the water-gas-shift reaction over an iron catalyst, in which the
re-adsorption and secondary reaction of the 1-olefins was considered. With this model, the
increase of the paraffin/olefin ratio with carbon number can be predicted. However, there
are significant deviations between the mole fractions of hydrocarbon predicted and those
of experiment, especially for methane and ethene.
In 1993, Lox and Froment[3,4] studied the FTS kinetics over
a commercial precipitated iron catalyst. Based on the LHHW scheme, they developed seven
sets of "elementary steps", from which detailed kinetic models were derived by
assuming the carbide mechanism for the FTS and formate intermediate scheme for the WGS
reaction. The rates of CO or H2 consumption and product formation were unified
in these models. Experimental data were regressed with large-scale nonlinear optimization
approaches for determining the "best" kinetic parameters, and statistic analysis was
applied to validate the feasibility of both models and parameters in them. The final model
could describe the distribution of linear paraffins and olefins of FT synthesis obeying
the ideal ASF distribution at the level of surface reaction. The formation rates of
hydrocarbon are given by:
Paraffins:
(15)
Olefins:
(16)
Chain growth probability:
(17)
However, the deviations, observed in many experiments, from the ideal
ASF distribution were totally neglected in their models. Very recently, the authors have
proposed a systematic approach for considering more complicated olefin re-adsorption
phenomenon in kinetic modelling over a precipitated iron catalyst on the basis of similar
ideas to those of Lox and Froment.[3] Three kinetic models based on mechanism
of CO insertion are established. The predicted product distribution fitted well with the
experimental data obtained at temperature 493-542 K, pressure 10.9-30.9 bar, and H2/CO
0.98-2.99 over an industrial Fe-Cu-K catalyst in a fixed bed reactor. The formation rates
of hydrocarbon are given by:

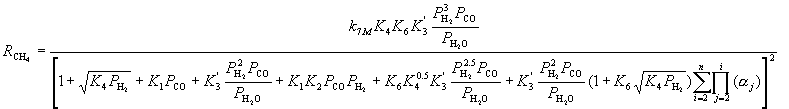

Methane:
(18)
Paraffins:
(19)

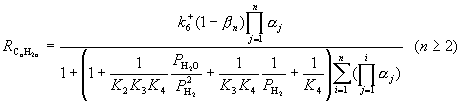

Olefins:
(20)

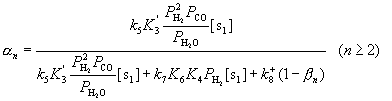

Chain growth probability:
(21)
In the above work
only the CO insertion mechanism was examined. However, the CO insertion mechanism for
chain growth has lost favor, because of the observation that most catalysts active for FT
reaction also dissociate CO when it adsorbed on the surface at the FT temperature. In
order to establish and test detailed mechanistic kinetics models for the Fischer-Tropsch
system with considering much more possibilities in mechanism combinations than before,
recently the authors[20] establish 13 kinetic models by consideration of
several plausible chain growth mechanisms, such as the alkyl and alkylidene mechanisms.
The new mechanistic model, in which the olefin re-adsorption and secondary reactions are
taken into account, leaves the transportation-enhanced olefin re-adsorption factor for
further work in the combination of kinetics and the reactor simulations. Combining these
FT model with three water-gas-shift model, finally 39 kinetic models are obtained. These
kinetic models were scanned sequentially by genetic algorithm and conventional
Levenberg-Marquardt method for finding the 'best' parameter values. The
results showed that the FTS model on the basis of the alkylidene mechanism and the WGS
model based on formate intermediate mechanism can describe both the distribution of
paraffins and olefins and the consumption rates of the reactants well. Although primary,
namely limited number of mechanism sets, from which only about 13 kinetics models were
scanned, was considered, our optimal model for an industrial iron catalyst showed a better
description for the non-ideal ASF distribution than that from Lox and Froment.
The formation rates of the hydrocarbon for final model are given as:
(22)
(23)
(24)
(25)
(26)
As above shown, the chain growth probability and the readsorption factor of are the function of carbon number.
6. CONCLUSION
From the above, it can be concluded that further research should be concentrated on
the development of rate expressions based reliable mechanisms. The computational method
can provide the atomic level information of F-T synthesis over the catalyst surface, which
can not be obtainable by using the traditional characterization methods. This method may
be a powerful tool to clarify the debate about the mechanism of FTS. The further
development of the FTS kinetics will focus on the model that unify the consumption
kinetics of reactants and the products distribution, which can provide the information of
the product selectivities and predict the influence of operation condition change on
performance of the catalyst, such as addition of alkene and CO2 et al. This
information is crucial important for the process development and reactor design.
REFERENCES
[1] Schulz H. Appl. Catal. A: general., 1999,186: 3.
[2] van der Laan G P, Beenackers A A C M. Catal. Rev.-Sci. Eng., 1999, 41 (3-4): 255 and
the literature herein.¡¡
[3] Lox E S, Froment G. F. Ind. Eng. Chem, Res., 1993, 32:
61.
[4] Lox E S, Froment G F. Ind. Eng. Chem Res., 1993, 32: 71.
[5] Wang Y-N, Ma W-P, Lu Y-J et al, Fuel, 2003, 82: 195.
[6] Liu Z-P, Hu P. J. Am. Chem. Soc., 2002, 124:11568.
[7] Ciob îcä I M. Ph. D.
thesis, Technical University Eindhoven, Eindhoven, 2002.
[8] Brady R, Pettit R. J. Am. Chem. Soc., 1980, 102: 6181.
[9] Joyner R W. Catalysis Letters, 1988, 1: 307.
[10] Bell AT. Catal. Rev.-Sci.Eng., 1981, 23 (1-2): 203.
[11]Maitlis P M. Pure Appl. Chem., 1989, 61: 1747.
[12] Overett M J, Hill R O, Moss J R. Coordination Chemistry reviews, 2000, 206-207: 581.
[13] Ciobîcä I M, Kramer G
J, Ge Q et al, Catal, 2002, 212:136
[14] Pichler H, Schultz H, Elstner M. Brennst. Chem., 1967, 48: 78.
[15] Huff G A, Satterfield C N. J. Catal., 1984, 85: 370.
[16] Iglesia E, Reyes S C, Madon R J. in Advances in catalysis and related subjects. (Eley
DD, Weisz PB and Pines H Eds.), Academic Press, New York, 1993, Vol. 39:221.
[17] Kuipers E W, Vinkenburg I H, Oosterbeek H. J. Catal., 1995, 152 (1):137.
[18] Ledakowicz S, Nettelhoff H, Kokuuun R et al, Top. Catal., 1985, 24:1043.
[19] Zimmerman W H, Bukur D B. Can. J. Chem. Eng., 1990, 68: 292.
[20] Yang J, Liu Y, Chang J et al, Ind. Eng. Chem. Res., 2003, 42 (2): 5066.
¡¡
|
