Synthesis of ({8-[4,6-Bis-(bis-pyridin-2-ylmethyl-amino)-[1,3,5]triazine-2-ylamino]-octyl}—ethoxy¬carbonylmethyl-amino)-acetic acid ethyl ester

Synthesis of ({8-[4,6-Bis-(bis-pyridin-2-ylmethyl-amino)-[1,3,5]triazine-2-ylamino]-octyl}—ethoxycarbonylmethyl-amino)-acetic acid ethyl ester

Daniel Vomasta and Burkhard König ^*

Institute of Organic Chemistry, University of Regensburg, D-93040 Regensburg, Germany
* Author to whom correspondance should be addressed. E-mail: [email protected]

Keywords: Dipicolylamine, 2,4,6-tris-chloro-triazine, iminodiacetic acid, two-prong

Combination of recognition units in synthetic receptors typically increases binding constants, if cooperativity occurs.[1] Dipicolylamine (Dpa) bis-zinc complexes are known to bind phosphate-dianions under physiological conditions with good affinities [2,3], whereas metal(II)-imino-diacetate (M(II)-IDA) complexes (metal(II) = copper(II), nickel(II) or zinc(II)) show affinity to N-terminal histidine.[2] Combining both units may lead to a selective binding of phosphorylated amino acid bearing N-terminal histidine. We report here a general synthetic route to ligands bearing a Dpa and an Ida site for metal ion complexation. The use of 6-chloro-N,N,N',N'-tetrakis-pyridin-2-ylmethyl-[1,3,5]triazine-2,4-diamine (1) in nucleophilic aromatic substitution provides a practical and versatile access to a variety of such two-prong Dpa receptors,[4] which is exemplarily shown on the preparation of compound 3.

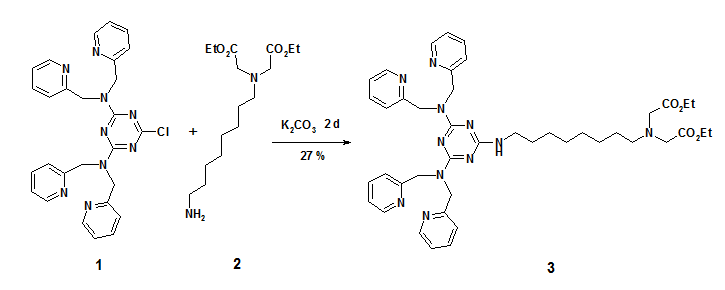

({8-[4,6-Bis-(bis-pyridin-2-ylmethyl-amino)-[1,3,5]triazine-2-ylamino]-octyl}—ethoxy¬carbonylmethyl-amino)-acetic acid ethyl ester (3): 6-Chloro-N,N,N',N'-tetrakis-pyridin-2-ylmethyl-[1,3,5]triazine-2,4-diamine (0.29 g, 1 mmol) was dissolved in dioxane (10 mL) and 0.5 g (1 mmol) of [(8-amino-octyl)-ethoxycarbonylmethyl-amino]-acetic acid ethyl ester (2) was added together with 0.27 g (2 mmol) of K₂CO₃. The mixture was refluxed for 2 d, filtered and evaporated. The crude product was purified by column chromatography (silica gel, ethyl acetate / ethanol 2:1, R_f = 0.27) to yield 0.2 g (27 %) of 3 as a pale yellow oil.

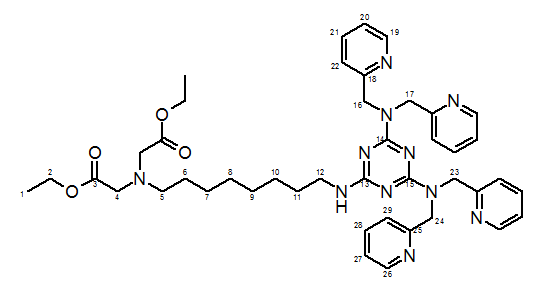

¹H-NMR (300 MHz, CDCl₃): δ = 1.04-1.23 (m, 14 H, H-7,8,9,10, H-1), 1.25-1-45 (m, 4 H, H-6,11), 2.58 (t, ³J = 7.5 Hz, 2 H, H-5), 3.14 (q, ³J = 6.4 Hz, 2 H, H-12), 3.44 (s, 4 H, H-4), 4.06 (q, ³J = 7.1 Hz, 4 H, H-2), 4.70-4.83 (m, 4 H, H-16,17), 4.85-4.96 (m, 4 H, H-23,24), 5.00 (t, ³J = 5.8 Hz, 1 H, NH), 6.86-6.97 (m, 4 H, H-20,22), 6.98-7.07 (m, 2 H, H-29), 7.13-7.23 (m, 2 H, H-27), 7.24-7.32 (m, 2 H, H-21), 7.44-7.56 (m, 2 H, H-28), 8.26-8.34 (m, 2 H, H-19), 8.36-8.44 (m, 2 H, H-26).
¹³C-NMR (100 MHz, CDCl₃, HSQC, HMBC, COSY): δ = 14.26 (+, 2 C, C-1), 26.79-26.98 (-, 2 C, C-7,8), 27.77 (-, 1 C, C-6), 29.05-29.30 (-, 2 C, C-9,10), 29.72 (-, 1 C, C-11), 40.67 (-, 1 C, C-5), 51.55-52.04 (-, 4 C, C-16,17,23,24), 54.30 (-, 1 C, C-12), 55.01 (-, 2 C, C-4), 60.22 (-, 2 C, C-2), 121.30-121.72 (+, 8 C, C-20,22,27,29), 136.14 (+, 2 C, C-21), 136.34 (+, 2 C, C-28), 148.80 (+, 2 C, C-19), 148.96 (+, 2 C, C-26), 155.14 (C_quat., 2 C, C-18), 158.73 (C_quat., 2 C, C-25), 165.97 (C_quat., 2 C, C-14,15), 166.44 (C_quat., 1 C, C-13), 171.19 (C_quat., 2 C, C-3).
ES-MS (acetonitrile/TFA): m/z (%) = 395.9 (100) [M+2H⁺], 264.3 (40) [M+3H⁺], 790.6 (2) [MH⁺ ].
IR (neat): n (cm^-1) = 3941 (w), 3573 (w) 3437 (s), 3054 (m), 2982 (m), 2932 (m), 2857 (m), 2306 (w), 2126 (w); 1732 (s), 1594 (s), 1543 (s), 1487 (s), 1429 (s), 1411 (s), 1360 (m), 1319 (m), 1266 (s), 1188 (m), 1096 (m), 1026 (m), 942 (w), 893 (w), 810 (m), 736 (s).
HR-MS (EI-MS, 70 eV): m/z: calc.: 789.4438; found: 789.4427.

[(8-Amino-octyl)-ethoxycarbonylmethyl-amino]-acetic acid ethyl ester (2):

To a solution of 5 g (34.7 mmol) of 1,8-diaminooctane in 50 mL of CHCl₃ at 0°C was added 2.36 g (11.6 mmol) of boc-anhydride in 14 mL of CHCl₃ dropwise during 0.5 h. The reaction mixture was stirred at room temp. for 2 d, the solvent was evaporated, the residue was taken up with ethyl acetate (200 mL), washed with brine (100 mL, 3x), dried over Na₂SO₄ and evaporated to give 2.3 g (85%) of 8-(amino-octyl)-carbamic acid tert-butyl ester [5] as a colourless oil.

¹H-NMR (300 MHz, CDCl₃): δ = 1.20-1.33 (m, 12 H, CH₂), 1.42 (s, 9 H, boc-CH₃), 2.65 (m, 2 H, CH₂), 3.10 (m, 2 H, CH₂), 4.55 (bs, 1 H, NH).

8-(Amino-octyl)-carbamic acid tert-butyl ester (2.26 g, 9.8 mmol) was dissolved in 100 mL of MeCN and 3.58 g (21.6 mmol) of KI, 4.07 g (29.4 mmol) of K₂CO₃ and 2.4 mL (3.6 g, 21.6 mmol) of ethylbromo acetate were added to the solution. The mixture was refluxed for 2 d and the solvent was evaporated. The residue was taken up with ethyl acetate (200 mL) and washed with water (100 mL, 3x), sat. NaHCO₃-solution (100 mL, 2x) and finally with brine (100 mL, 2x). The combined organic phases were dried over Na₂SO₄, filtered and evaporated to yield 2.7 g (69%) of [(8-tert-butoxycarbonylamino-octyl)-ethoxycarbonylmethyl-amino]-acetic acid ethyl ester as orange oil. The compound was used without further purification.
¹H-NMR (300 MHz, CDCl₃): δ = 1.14-1.28 (m, 14 H, CH₃, CH₂), 1.30-1.46 (m, 13 H, CH₃, CH₂), 2.56-2.65 (m, 2 H, CH₂), 2.95-3.07 (m, 2 H, CH₂), 3.46 (s, 4 H, CH₂), 4.10 (quart, 4 H, CH₂), 4.56 (bs, 1 H, NH).
¹³C-NMR (75 MHz, CDCl₃): δ = 14.1 (+,2 C), 26.7-27.1 (-, 3 C); 28.4 (+, 3 C), 29.2 (-, 2 C), 29.9 (-, 1 C), 40.6 (-, 1 C), 54.3 (-, 1 C), 55.1 (-, 2 C), 60.5 (-, 2 C), 155.9 (C_quat, 1 C), 171.3 (C_quat, 2 C), 171.6 (C_quat, 1 C).
ES-MS (DCM/MeOH + 10 mmol/l NH₄Ac): m/z (%) = 417.4 (100) [MH⁺], 361.3 (10) [MH⁺-C₄H₈].
IR (neat): n (cm^-1) = 3445 (s), 3055 (w), 2982 (m), 2932 (m), 2857 (w), 2209 (w), 1655 (s), 1615 (w), 1502 (w), 1446 (w), 1367 (m), 1265 (s), 1175 (s), 1030 (s), 867 (w), 739 (s).
HR-MS (EI-MS 70 eV): m/z (%): calc.: 416.2886; found: 416.2878.

[(8-tert-Butoxycarbonylamino-octyl)-ethoxycarbonylmethyl-amino]-acetic acid ethyl ester (2.72 g, 6.75 mmol) was dissolved in 100 mL of dichloromethane and HCl sat. Et₂O (approx. 8 mL) was added to the solution and the mixture was stirred at room temp. for 2 d. The mixture was evaporated to dryness. The residue was taken up with ethyl acetate 100 mL and washed with sat. NaHCO₃ solution (50 mL, 3x). The organic phases were dried over Na₂SO₄ and evaporated to yield 1.34 g (66 %) of compound 2 as orange oil.
¹H-NMR (300 MHz, CDCl₃): δ = 1.17-1.26 (m, 14 H, CH₃, CH₂), 1.33-1.49 (m, 4 H, CH₂), 2.13 (bs, 2 H, NH₂), 2.57-2.68 (m, 4 H, CH₂), 3.46 (s, 4 H, CH₂), 4.83 (quart., ³J = 7.1 Hz, 4 H, CH₂).
¹³C-NMR (75 MHz, CDCl₃): δ = 14.2 (+, 2 C), 26.7-28.3 (-, 3 C), 29.4 (-, 2 C), 33.1 (-, 1 C); 42.0 (-, 1 C); 54.4 (-, 1 C); 55.1 (-, 2 C); 60.6 (-, 2 C); 171.4 (C_quat, 2 C).
CI-MS (NH₃): m/z (%) = 317.2 (100) [MH⁺].
IR (neat): n (cm^-1) = 3414 (s), 2984 (w), 2933 (w), 2875 (w), 2084 (w), 1735 (s), 1655 (s), 1535 (w), 1371 (w), 1266 (m), 1192 (m), 1123 (w), 1029 (m), 736 (s).
HR-MS (EI-MS, 70 eV): m/z (%) calc.: 316.2362; found: 316.2353.
